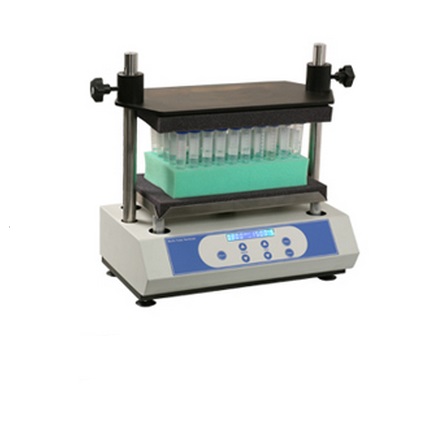

The MV-01 Multi-Tube Vortex Mixer, mix one can handle up to 50 samples. Speed is adjustable from 500 to 2500 rpm with electronic speed control. Built-in timer is adjustable from one minute to 99h59min operation. Various tube sizes can be mixed by simply changing the foam tube racks.
Programmable pulsing mode allows user to adjust the pulse-on and pulse-off times between 1~59 seconds in 1 second intervals. This feature enhances the vortex action by creating a more vigorous mix.
Features :
1. Can handle 50 samples
2. Two modes: continuous type of work or Programmable pulsing mode
3. Microprocessor control
4. LCD display, and easy to use the panel
5. The variable speed microprocessor control provides consistent uniform mixing action
6. Independent LCD displays for speed and time allow operator to view both settings at once
Technical parameters :
|
Speed range |
500-2500rpm |
|
Speed accuracy |
± 50rpm (at 2500rpm detection) |
|
Timing range |
1min-100h |
|
Working diameter |
3.6mm |
|
Maximum load |
4.5kg |
|
Dimensions |
250x426x480 mm |
|
Weight |
21.5kg |
|
Power |
230V or 120V, 50/60Hz, 60W |
Optional accessories :
|
Type |
Detail |
Dimension (mm) |
|
MV-B01 |
50 x Φ10mm tube frame |
245×132×45 mm |
|
MV-B02 |
50 x Φ12mm tube frame |
245×132×45 mm |
|
MV-B03 |
50 x Φ13mm tube frame |
245×132×45 mm |
|
MV-B04 |
50 x Φ16mm tube frame(15ml tube) |
245×132×45 mm |
|
MV-B05 |
15 x Φ25mm tube frame |
245×132×45 mm |
|
MV-B06 |
15 x Φ29mm tube frame(50ml tube) |
245×132×45 mm |
|
MV-B00 |
Tray Pad Set (Upper & Lower) |
305×178.5×25 mm |
