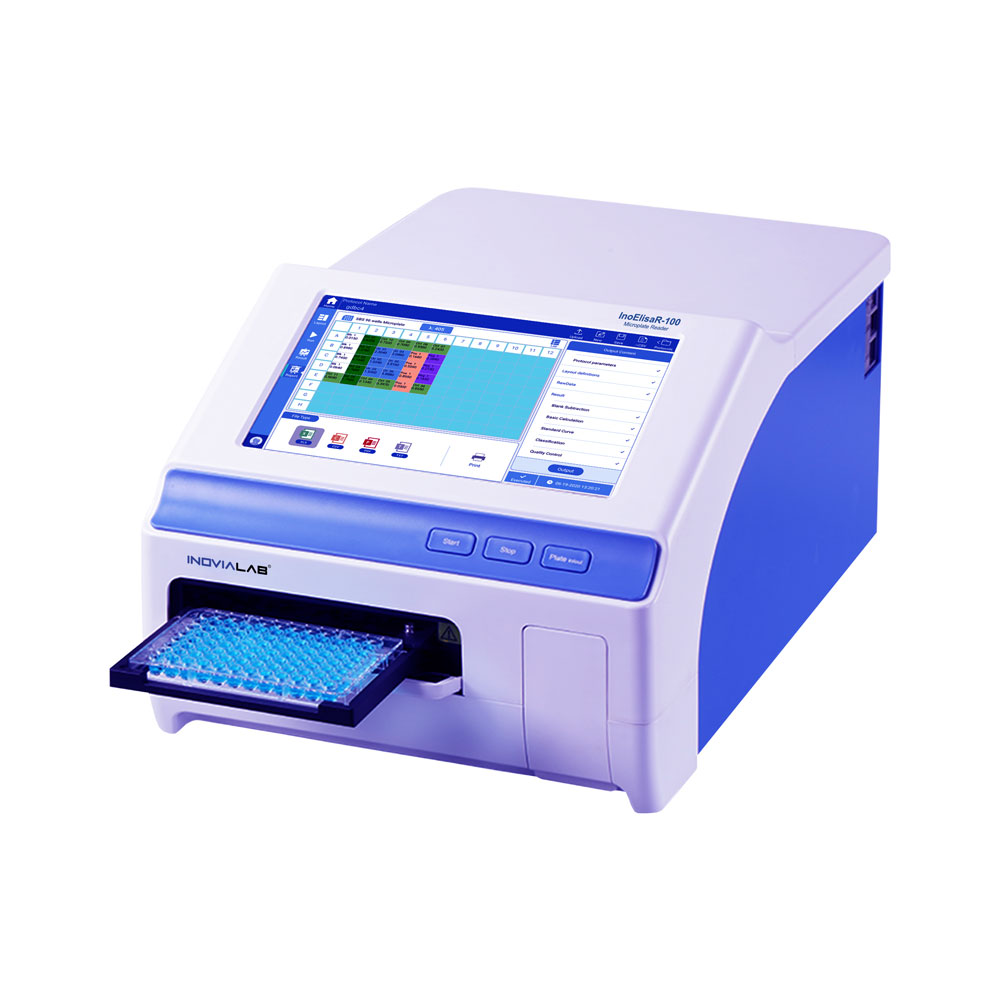

InoElisaR-100/100ED microplate reader is a high quality microplate reader based on monochromator with wavelength range of 200 - 1000nm.
It can be used for spectral scanning, endpoint method and kinetic detection.
Suitable for 96 and 384 well plates with or without lids.
InoElisaR-100/100ED can be shaken and cultured in microplates and the culture temperature can be up to 45°C.
It can be operated independently via the device's built-in software or with optional software.
> Optional system guarantees high quality data and stable performance of InoElisaR-100
> Double beam optional system has reference optional channel system which makes the data more stable.
> After the device is initialized, the light source, grating, detector, location, etc. It is automatically calibrated to ensure stable and reliable operation of the device.
> It has a long-lasting xenon lamp that can be used 109 times.
> InoElisaR-100/100ED uses xenon flash lamp as light source, which selects the wavelength range from 200-1000nm in 1nm steps by grating the monochromator for full spectrum scanning.
With InoElisaR-100HT;
> Independent cuvette slot.
> With incubation function, RT+4°C to 45°C.
> Independent cuvette software can be used directly for endpoint method, kinetics, spectral screening and standard curve generation.
Powerful and Flexible Software
Account Management and User Authorization Classification
> Administrator can create and manage different sub-user accounts, which are convenient for account management of experiments. At the same time, it can create a password for each account to prevent access to these experiments by other users.
> Only personal experiment contents remain in the sub-account appropriate for the experiment registration.
> There is no need for a password for the task account and you can quickly enter the experimental program.
Powerful Data Analysis and Process
> Provides multiple processing methods including blank extraction, standard curve generation, qualitative analysis, quality control, kinetic and spectral analysis to help you achieve the analysis results you want.
Standard Curve Library
> The device is equipped with a standard curve library. The standard curve generated in the first experiment can be stored in the standard curve library, which is suitable for direct use in the next experiment. No need to create a standard curve every time.
FTP (File Transfer Protocol)
> Users can upload device data directly to a computer via an FTP server, and users can view the data results in the authorized folder at any time.
Multiple Report Export Types
> The device supports four different formats to export data: Excel, TXT, CSV and PDF.
Technical Specifications
|
Model |
InoElisaR-100/100ED |
|
Display |
10 inch Touch Screen |
|
Light Source |
Xenon Lamp |
|
Wavelength Range |
200-1000nm with 1nm steps |
|
Wavelength Accuracy |
2nm |
|
Tepetition |
0.2nm |
|
Wavelength Selection |
Monochromator |
|
Read-out Range |
0 - 4.0 OD |
|
Half-bandwidth of Filters |
<2.5nm |
|
Detector |
Two silicon photoelectric detector, one for measurement, another for reference |
|
Linearity at 450nm |
R²≥0.999,[0.0-3.0Abs] |
|
Accuracy at 450nm |
±(1.0 %+0.003Abs), (0-2.0 Abs]; ±2.0 %, (2.0-2.5Abs] |
|
Precision at 450nm |
CV <0.5 % or SD<0.003 accurate model; CV <1.0 % fast mode |
|
Test Speed |
8 seconds with 96-well plate (fast mode); 28 seconds with 96-well plate (accurate model) |
|
Plate Shaking |
Linear; three options for speed |
|
Incubator |
RT+4°C - 45°C |
|
UI |
Integrated software or PC control software |
|
Analysis Software |
ReaderIt-II |
|
User Interface |
Touch screen, android system, 10 inch touch screen, external keyboard & mouse |
|
Storage |
16G, more than 20,000 test records |
|
Port |
2 USB A type ports, 1 USB B type port, 1 Ethernet port |
|
Automated System |
Temporarily incompatible with automated systems |
|
Power Supply |
DC24V, 6.67A |
|
Dimension (WxDxH) |
300x500x260mm |
|
Weight |
15.5 Kg |
