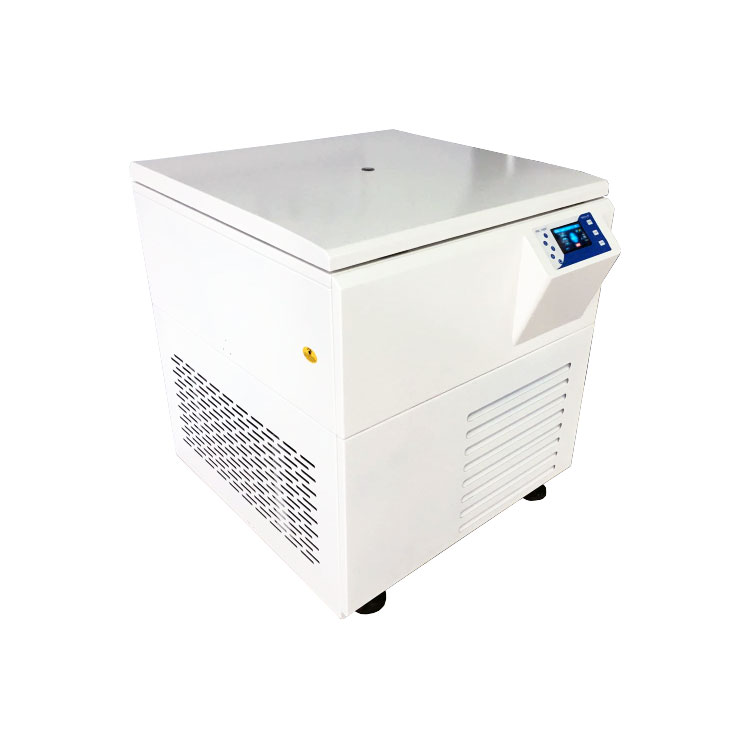

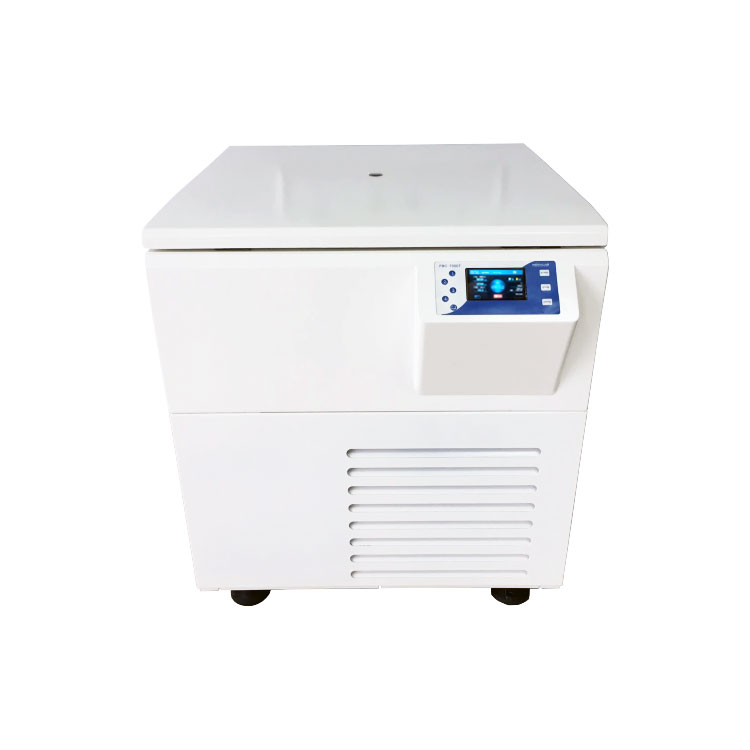

Our FBC and BRC Series newly designed touch screen refrigerated centrifuges are generally used in blood banks, laboratories and hospitals, but recently they are preferred especially for processes such as plasma, platelet and erythrocyte separation from whole blood.
* In production; A brushless motor with high torque, microprocessor control and maintenance-free, which does not cause dust pollution, is used.
* The flexible shaft system with direct drive and rotor can tolerate up to 10 grams of imbalance, thus providing smooth running, low noise and small vibration.
* It has a fluorine-free double-loop cooled imported compressor and sensitive temperature control, which does not create environmental pollution, easily converts cold and hot.
* It has the ability to record 10 different programs and also has 10 different acceleration and deceleration modes that can be adjusted.
* The device has rotors and equipments that can smoothly centrifuge blood bags used in the market.
* Electric automatic lock system ensures safety and reliable operation.
* Thanks to this system equipped with sensors, the device does not start until the lid is closed, and the lid cannot be opened until the device comes to a complete stop. In case of a power outage, the lid can be opened with the manual switch on the side of the device and you can access your samples.
* Thanks to the transparent monitoring point on the top cover of the device, you can perform your calibrations comfortably and safely.
* The device is also designed to warn the user in case of any malfunction or misuse with its other sensors and safety equipment. In addition, the centrifuge body made of high steel offers a completely safe and secure operation.
Technical Specifications
Model | FBC-21000T |
Max. Speed | 21000 RPM |
Max. RCF | 46140 xg |
Max. Capacity | 4x800mL |
Temperature Range | -20°C - 40°C |
Speed Accuracy | ±20 RPM |
Temperature Accuracy | ±1°C |
Timer | 1 - 9h59min |
Noise | <65dBa |
Dimension (WxDxH) | 800x740x930mm |
Weight | 300 Kg |
Rotor Types
Type | Capacity | Max. Speed | Max. RCF |
Swing Rotor | 4 x 5mL | 15000 | 21670 |
Swing Rotor | 4 x 30mL | 13000 | 23580 |
Swing Rotor | 4 x 50mL | 10000 | 16240 |
Swing Rotor | 4 x 800mL | 4000 | 3450 |
Angle Rotor | 12 x 10/15mL | 21000 | 44440 |
Angle rotor | 16 x 10/15mL | 20000 | 46140 |
Angle rotor | 8 x 20/30mL | 20000 | 42040 |
Angle rotor | 6 x 50mL | 20000 | 44700 |
Angle rotor | 8 x 50mL | 15000 | 27540 |
Angle rotor | 6 x 70mL | 15000 | 25480 |
Angle rotor | 8 x 100mL | 12000 | 19610 |
Angle rotor | 4 x 250mL | 14000 | 27840 |
Angle rotor | 4 x 300mL | 11000 | 18120 |
Angle rotor | 6 x 300mL | 10000 | 15730 |
Angle rotor | 6 x 500mL | 9000 | 14860 |
Type |
Capacity |
Max. Speed |
Max. RCF |
Standard Flow |
Deposit |
Continuous Centrifugal Rotor |
1000mL |
17000 |
31390 |
285-350mL/min |
500mL |
Continuous Centrifugal Rotor |
1800mL |
14000 |
21710 |
220-500mL/min |
500mL |
Continuous Centrifugal Rotor |
1800mL |
8000 |
8600 |
220-500mL/min |
1000mL |
Continuous Centrifugal Rotor |
3000mL |
8000 |
9450 |
220-500mL/min |
1600mL |
