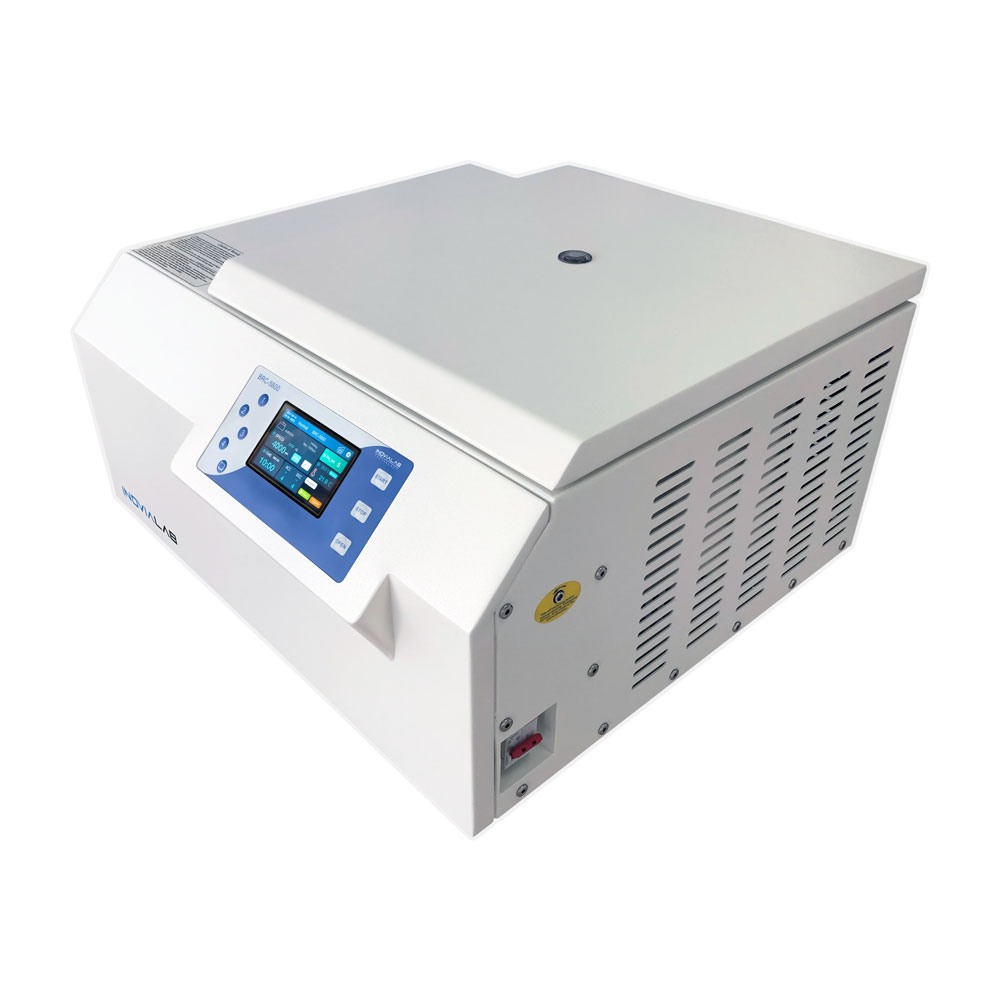

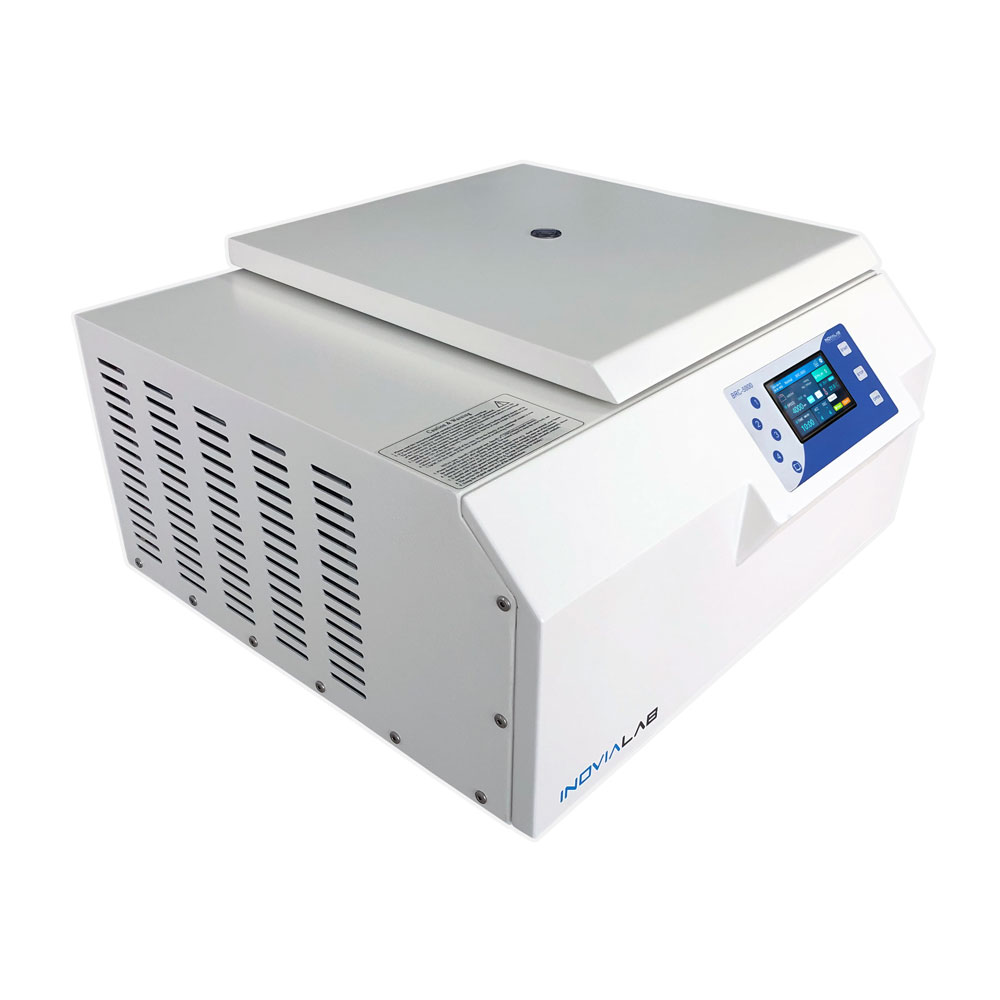

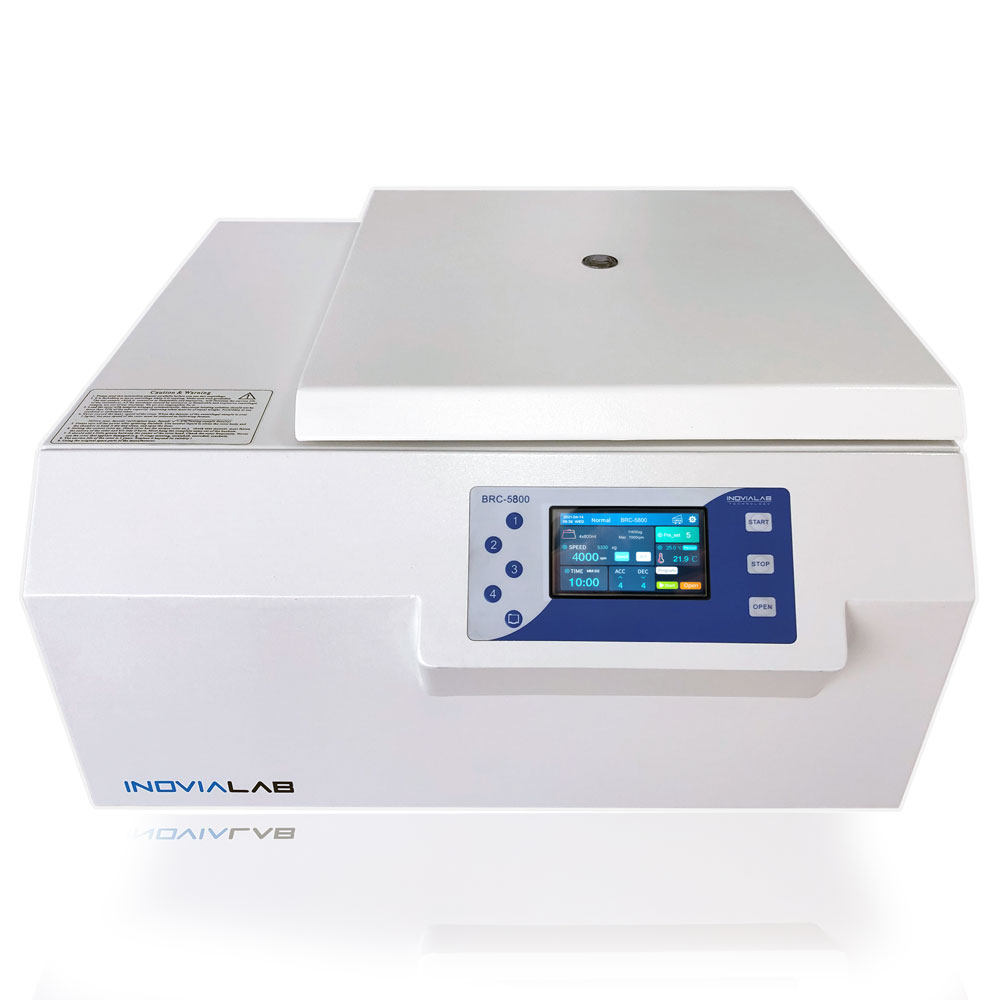

BRC-5800 High Capacity Benchtop Refrigerated Centrifuge



Our FBC and BRC Series newly designed touch screen refrigerated centrifuges are generally used in blood banks, laboratories and hospitals, but recently they are preferred especially for processes such as plasma, platelet and erythrocyte separation from whole blood.

* In production; A brushless motor with high torque, microprocessor control and maintenance-free, which does not cause dust pollution, is used.

* The flexible shaft system with direct drive and rotor can tolerate up to 10 grams of imbalance, thus providing smooth running, low noise and small vibration.

* It has a fluorine-free double-loop cooled imported compressor and sensitive temperature control, which does not create environmental pollution, easily converts cold and hot.

* It has the ability to record 10 different programs and also has 10 different acceleration and deceleration modes that can be adjusted.

* The device has rotors and equipments that can smoothly centrifuge blood bags used in the market.

* Electric automatic lock system ensures safety and reliable operation.

* Thanks to this system equipped with sensors, the device does not start until the lid is closed, and the lid cannot be opened until the device comes to a complete stop. In case of a power outage, the lid can be opened with the manual switch on the side of the device and you can access your samples.

* Thanks to the transparent monitoring point on the top cover of the device, you can perform your calibrations comfortably and safely.

* The device is also designed to warn the user in case of any malfunction or misuse with its other sensors and safety equipment. In addition, the centrifuge body made of high steel offers a completely safe and secure operation.





Technical Specifications





Model BRC-5800
Max. Speed 5000 RPM
Max. RCF 4730 xg
Max. Capacity 4x800mL
Temperature Range -20°C - 40°C
Speed Accuracy ±20 RPM
Temperature Accuracy ±1°C
Timer 1 - 99h59min
Noise <65dBa
Dimension (WxDxH) 720x720x400mm
Package Dimension (WxDxH) 880x800x580mm
Weight 125 Kg / 153 Kg







Rotor Types





Type

Capacity

Max. Speed

Max. RCF

Swing Rotor

16 x 5ml Vacuum Tube Adapter

5000

2580

Swing Rotor

24 x 5ml Vacuum Tube Adapter

5000

2580

Swing Rotor

32 x 5ml Vacuum Tube Adapter

5000

2580

Swing Rotor

16 x 7ml Vacuum Tube Adapter

5000

2580

Swing Rotor

24 x 7ml Vacuum Tube Adapter

5000

2580

Swing Rotor

32 x 7ml Vacuum Tube Adapter

5000

2580

Swing Rotor

16 x 10ml Vacuum Tube

5000

2580

Swing Rotor

24 x 10ml Vacuum Tube

5000

2580

Swing Rotor

32 x 10ml Vacuum Tube

5000

2580

Swing Rotor

16 x 15ml

4000

2950

Swing Rotor

24 x 15ml

4000

2950

Swing Rotor

4 x 50ml

5000

4420

Swing Rotor

8 x 50ml

4000

2950

Swing Rotor

4 x 100

5000

4420

Swing Rotor

4 x 500ml (Round Cup)

4500

4460

Swing Rotor

4 x 500ml (Square Cup)

4500

4460

Swing Rotor

4 x 800ml (Round Cup)

4500

4370

Angle Rotor

6 x 15ml

5000

2540

Angle Rotor

12 x 15ml

5000

3080

Angle Rotor

24 x 15ml

5000

3500

Angle Rotor

4 x 50ml

5000

2520

Angle Rotor

6 x 50ml

5000

2850

Angle Rotor

12 x 50ml

5000

3860

Angle Rotor

4 x 100ml

5000

2630

Angle Rotor

6 x 100ml

5000

3130

Angle Rotor

12 x 100ml

4000

2970

Microplate Rotor

2x3 x 48 well

4000

2300

Microplate Rotor

2x4 x 96 well

4000

2490
