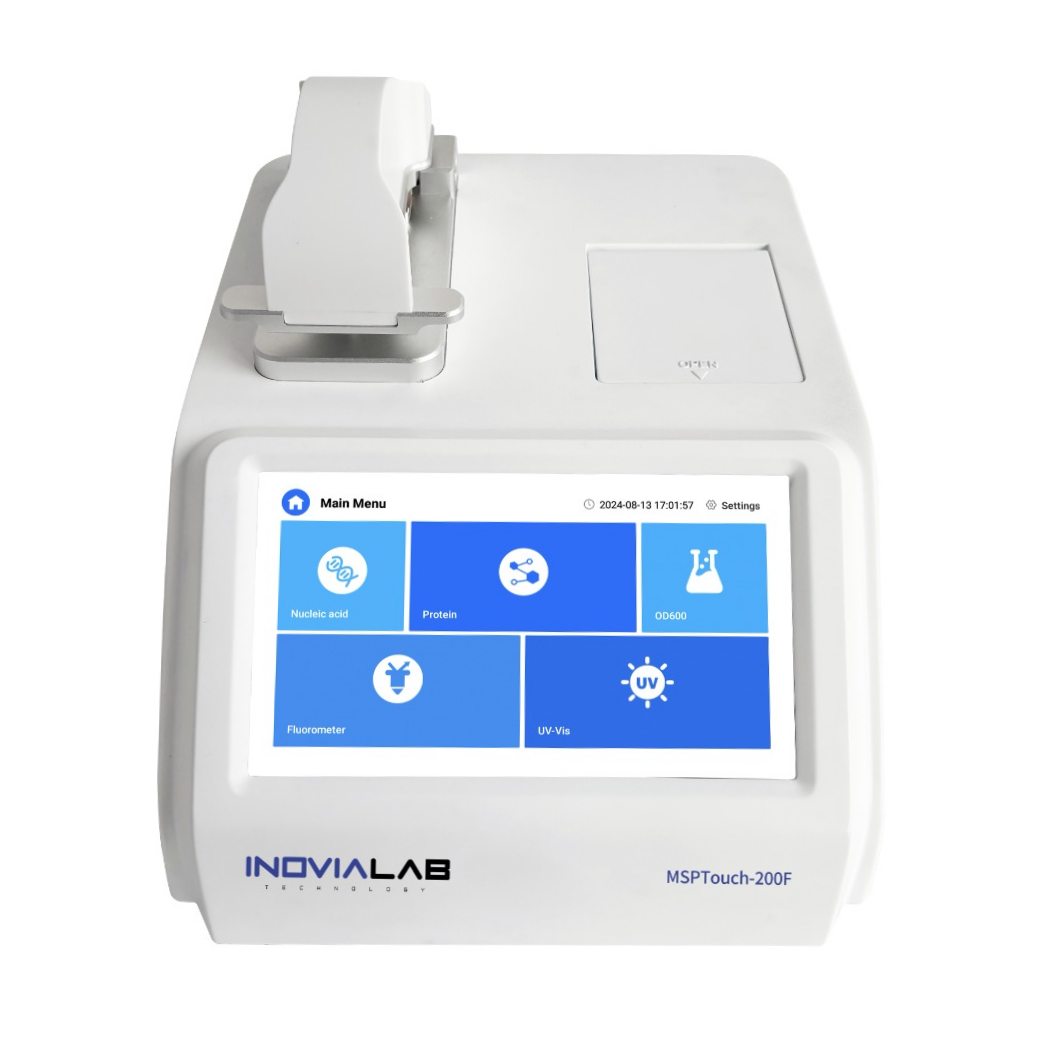

The MSPTouch Series is a basic full-spectrum micro-UV spectrophotometer with wavelength ranges necessary for the measurement of nucleic acids and proteins.
It is a system that will provide more effective results for a biology laboratory conducting research in life sciences.
Features;
1. Computer-free 7 inch touch screen with simple interface.
2. Android operating system with free software update.
3. Xenon flash lamp with durability up to 10 years.
4. Flexible data output. It is capable of printing data with the internal printer or sharing with an external USB memory.
5. Provides low cost operation without the need for expensive accessories and consumables and also allows direct micro-volume measurement with 0.5 - 2ul sample.
6. OD600 measurement function, ideal for measuring bacteria concentration.
7. The amount and purity of nucleic acids, proteins, etc. requires only 0.5 - 2ul of samples to accurately determine measurements.
8. Full scan in 6s without lamp warm-up time.
9. The device switches off automatically when it is idle for more than 5 minutes. It is enough to touch the screen to switch back on again.
Technical Specifications;
| MODEL | MSPTouch-50 | MSPTouch-200 |
| Wavelength Range | 230nm, 260nm, 280nm | 200 - 800nm |
| Sample Size | 0.5 - 2.0ul | |
| Path Length | 0.2mm (For high concentration measurement) 1.0mm (Ordinary concentration) |
|
| Light Source | Xenon Flash Lamp | |
| Detector Type | Photodiode | 3864 - Element Linear Silicon CCD Array |
| Wavelength Accuracy | N/A | 1nm |
| Spectral Resolution | N/A | ≤3nm (FWHM at Hg 546nm) |
| Absorbance Precision | 0.003Abs | |
| Absorbance Accuracy | 1% (7.332Abs at 260nm) | |
| Absorbance Range | 0.02 - 80A | 0.02 - 100A |
| Detection Range | 10 - 4000ng/ul (dsDNA) | 10 - 5000ng/ul (dsDNA) |
| Measurement Time | <15sec. | <6sec. |
| Data Output | USB | USB, SD-RAM Card |
| Sample Pedestal Material | Aluminum alloy and Quartz fiber | |
| Operating Voltage | 24VDC | |
| Operating Power Consumption | 40W | |
| Standby Power Consumption | 5W | |
| Dimension (WxDxH)(mm) | 210x268x181 | |
| Weight | 2.8 kg | |
| Software Compatibility | Android System | |
OD600nm Measurement;
| Light Source | LED | |
| Wavelength Range | 600±8nm | |
| Abosorbance Range | 0 - 4A | |
