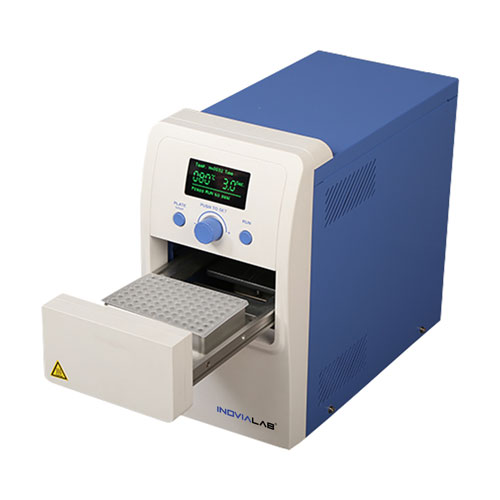

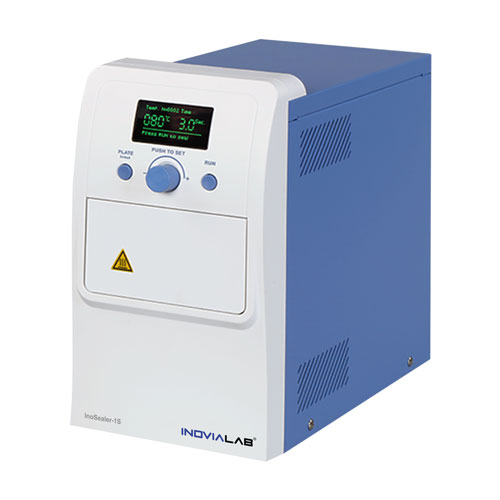

The InoSealer-1S Plate Sealer is the ideal semi-automatic thermal sealing device needed in laboratory environments where uniform and constant coating of microplates is required.
Unlike the manual plate sealers, InoSealer-1S has a repeatable plate sealing feature. Sealing conditions can be easily optimized to guarantee consistent results with variable temperature and time settings and to eliminate sample loss.
InoSealer-1S, plastic film, food, medicine, inspection institute, scholastic scientific research and teaching experience can be applied in the quality control of many manufacturers.
Features;
1. Forming different microwell plates and heat seals,
2. Adjustable coating temperature (80 - 200°C),
3. High light OLED display without angle limit,
4. Precise temperature, timing and pressure for consistent sealing,
5. Automatic counting function,6. Almost all ANSI microplates or plate adapters compatible with PCR plates,
7. Motorized drawer and motorized sealing board guaranteeing good results.
Technical Specifications
Model | InoSealer-1 |
Display | OLED |
Sealing Temperature | 80 - 200°C (increment of 1.0°C) |
Temperature Accuracy | ±1.0°C |
Temperature Uniformity | ±1.0°C |
Sealing Time | 0.5 - 10 seconds (increment of 0.1s) |
Seal Plate Heights | 9 to 48mm |
Power Supply | AC220V 50/60Hz 300W |
Dimension (DxWxH) | 370x178x330mm |
Weight | 9.6 Kg |
Compatible Plate Materials | PP (Polypropylene) PS (Polystyrene) PE (Polyethylene) |
Compatible Plate Types | SBS Standard Plates, Deep-well Plates PCR Plates (Skirted, Semi-Skirted and No-Skirted Formats) |
Heating Sealing Films & Foils | Foil-Polyproylene Clear Polyester-Polypropylene Laminate Clear Polymer Thin Clear Polymer |
