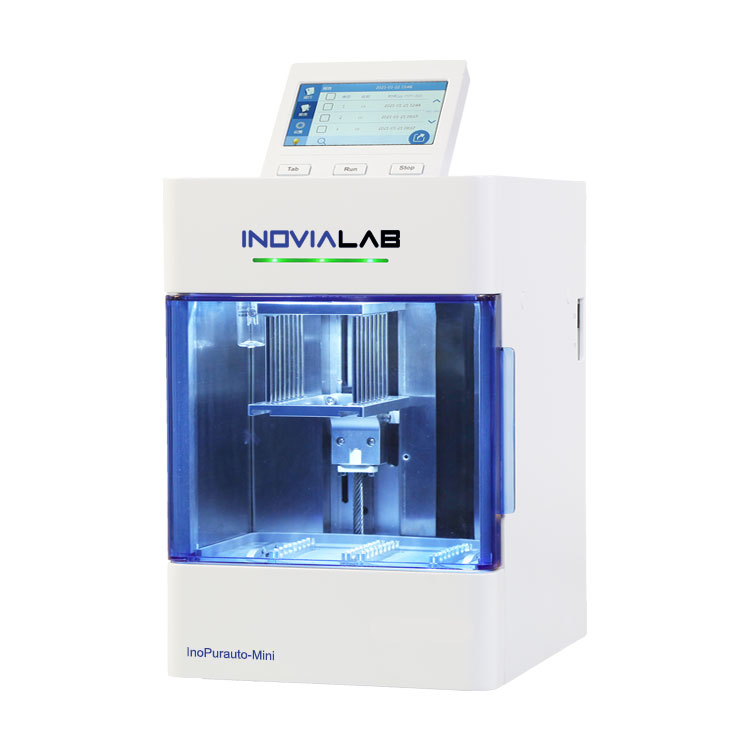

The InoPurauto-Mini Automated Nucleic Acid Purification System is a further miniaturized product based on the existing nucleic acid extractor.
The total volume of the device is only a quarter of that of similar products common on the market.
Although the size of the device has been reduced, it still meets the requirements of similar products common in the market.
Some of the basic features of the device;
> You can observe the operating status of the device in real time with the built-in LED lighting.
> The device has a graphical interface design to facilitate operations.
> Small and ergonomic special design and easy to carry.
> Thanks to the design that supports low power consumption, it is possible to use the device with battery. It has a function that automatically stops the screen when the device is not used for a long time.
> External power supply allowing battery power supply, DC24V/5A
> High quality and fast extraction.
> A maximum of 16 samples, 1mL, can be processed at one time.
> UV sterilization function is available to prevent cross contamination.
Technical Specifications
| Model | InoPurauto-Mini |
| Throughput | 1 - 16 |
| Process Volume | 20 - 1000µL |
| Consumable | 8-Tip comb, 96 Deepwell plate/Single test strip |
| Principle / Working Mode | Magnetic bead method, Magnetid rod method / up and down mixing |
| Stability | CV≤3% |
| Collection Efficiency | >95% |
| Heating for Lysis Tube | Ambient Temperature - 120°C |
| Heating for Elution Tube | Ambient Temperature - 120°C |
| Operation | 4.3" Touch screen, 3 Shortcut keys, External mouse |
| Storage Capacity | Preset 6 programs, max store 100 programs |
| Protocol Management | Create, Edit, Delete, Protocol mode |
| Extension Interface | Standard USB, Ethernet port, wifi |
| Lighting | Yes |
| Pollution Control | Fan exhaustion, UV Sterilization |
| Dimension | 200x260x300mm |
| Weight | 7 Kg |
