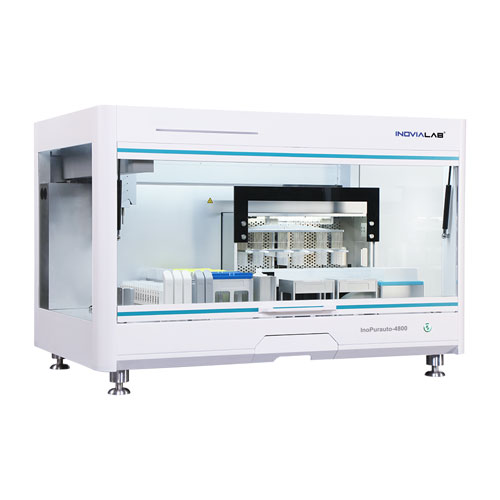

InoPurauto-4800 automatic nucleic acid extraction and purification device is a high-efficiency automatic nucleic acid extraction system.
The device is based on the magnetic bead method to extract nucleic acid.
During the purification process, pipetting, lysis, washing, elution, and PCR system setup steps are completed automatically at the workstation.
48x1 mL sample can be processed at a time with single-point operation without requiring manual intervention.
Fast and flexible trial
> Extraction time: 48 samples - 15 - 30 minutes (depending on different reagents)
> Pipette sample time: 48 samples - 13 min
> Time for PCR setup: 48 samples - 10 minutes
> Bottled or prefilled reagents can be selected for extraction according to actual needs.
> The desk with modular design can be customized for the layout of different forms according to need.
Effective cross-contamination prevention
> Air displacement pipetting principle to prevent liquid contamination
> Hanging anti-fall technology to prevent falling
> Negative pressure filter system to prevent aerosol contamination
High precision liquid processing
> 1+2 pipettor combination meets various needs of sample, extraction reagent and PCR reagent.
> The pipettor's pressure sensing technology not only detects the height of the liquid level, but also detects empty suction, remaining liquid volume and clogging.
> Detailed pipetting parameter settings for different liquids effectively increase accuracy.

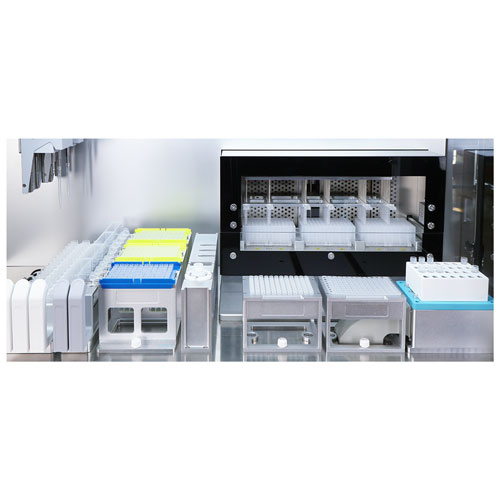

Vortex magnetic beads and PCR reagent block
> To meet methylation requirements, 4800M adds a temperature control module to realize multi-stage temperature variation.
> The vortex specially designed for magnetic beads is stable, which increases the efficiency of the experiment.
> PCR reagent block can be customized according to customer requirements.
Easy to learn operating software
> With the graphical user interface, program editing can be completed without complex operations.
> Extensive built-in libraries of consumable carriers and fluids to reduce customer program matching time.
> Users can choose according to their needs to complete the entire process of liquid handling, extraction and PCR/qPCR setup.
Technical Specifications
| Model | InoPurauto-4800 |
| Function | Automatic pipette samples and reagents, extract nucleic acid and set-up PCR systems |
| Information Management | Support external USB scanner, barcode scanning function, automatic scanning function |
| Pipetting Principle | Air displacement pipetting technology |
| Pipettor | Two 1000 μL pipettor, one 200 μL pipettor |
| Pipetting Range (μL) | 1-1000 μL |
| Tips | Inovialab tips, and other tips compatible with this instrument |
| Liquid Detection | Pressure detection: liquid level detection, tip clogging detection and residual liquid detection |
| Samples Per Run | 1-48 |
| Extraction Processing Volume | 50-1000 μL |
| Extraction Uniformity | CV≤5 % |
| Single Sample Consumable | Support |
| Extraction Temperature Control | Elution, lysis temperature control : RT - 120°C |
| Reagent Cooling Module | 0°C - 105°C (Optional*) |
| Temperature Control Module | 4°C - 105°C |
| UV Sterilization | Separate UV lamp: extraction area, pipetting area and waste container area |
| Filter | Equipped with three Hepa Filters |
| Instrument Port | USB Port |
| Noise | ≤60 dB |
| Power Supply | 220V, 8A, 50/60Hz // Standby 30W, Maximum 550W |
| Dimenson (WxDxH) | 1090x700x724mm |
| Net Weight | 130 Kg |
