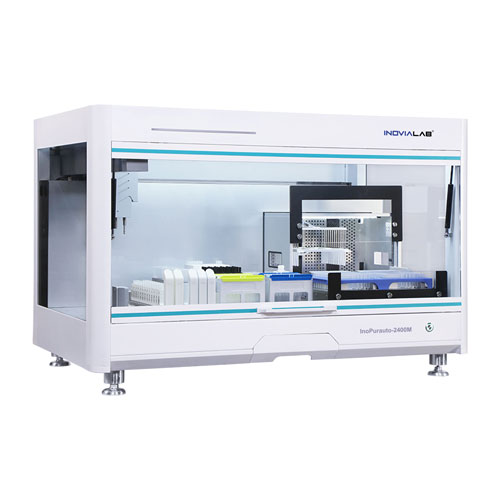

InoPurauto-2400M is a high efficiency, fully automatic nucleic acid extraction equipment.

Compared with InoPurauto-2400, in addition to the basic functions, it can also realize the automation of the methylation process.

InoPurauto-2400M is based on the magnetic bead method to extract nucleic acid. During the purification process, pipetting, lysis, washing, elution, and PCR system setup steps can be performed automatically at the workstation.

One-stop operation without manual intervention, can output 24x10mL samples simultaneously; This is more efficient and convenient than manual and semi-automatic extraction.

At the same time, standardized and automated operating steps prevent human error and experimental results are more reliable and reproducible.

Large volume extraction to meet special needs

>The maximum reaction system of the sample library is 10 mL and can meet the needs of cfDNA extraction.

> The elution hole elutes a small volume to meet nucleic acid concentration requirements.

High precision liquid processing

> Dual channel pipetting design, 1x50-5000uL fits 1mL/5mL pipettor and 1x1-200uL fits 200uL pipettor.

> The pipettor's pressure sensing technology not only detects the height of the liquid level, but also detects empty suction, remaining liquid volume and blockage.

> Detailed pipetting parameter settings for different liquids can effectively improve accuracy.

Methylation transforms specific functional modules

> Module temperature control range 4°C - 105°C

> InoPurauto-4800 adds a temperature control module to realize multi-stage temperature variation to meet methylation requirements.

> Thermo cap design can prevent reagent condensation from affecting the reagent concentration in the tube and has technology to prevent cross-contamination.

Easy to learn operating software

> Graphical user interface, program editing can be completed without complex operations.

> Extensive built-in libraries of consumable carriers and fluids to reduce customer program matching time.

> Users can choose according to their needs to complete the entire process of liquid handling, extraction and PCR/qPCR setup.
