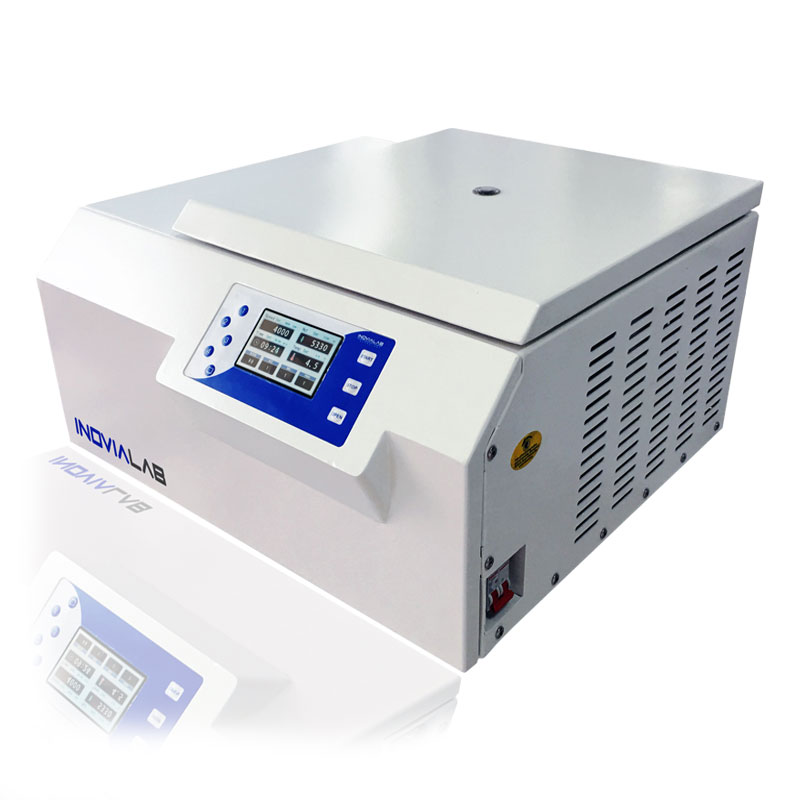

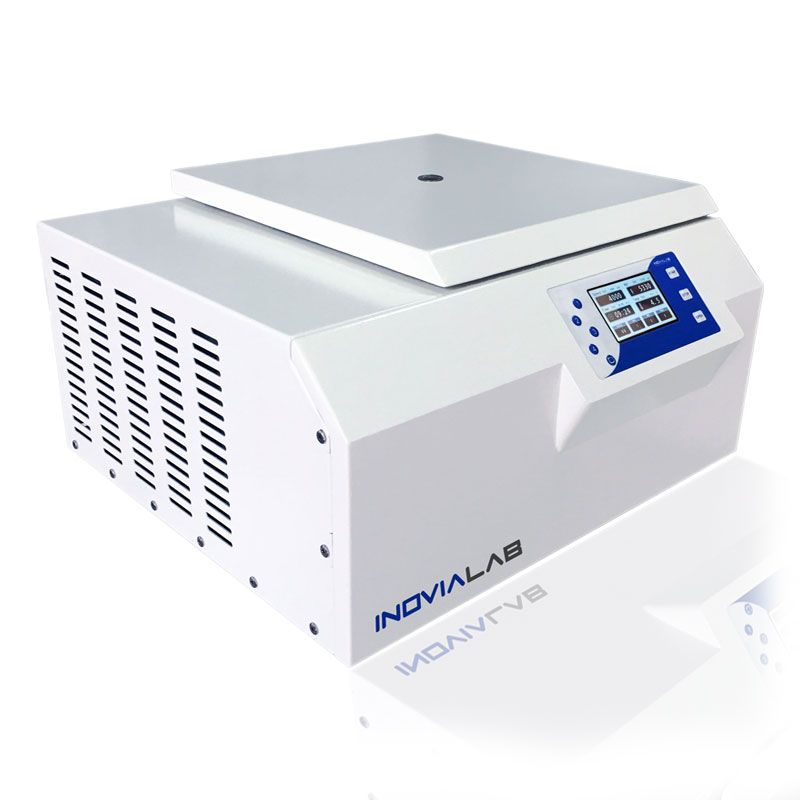

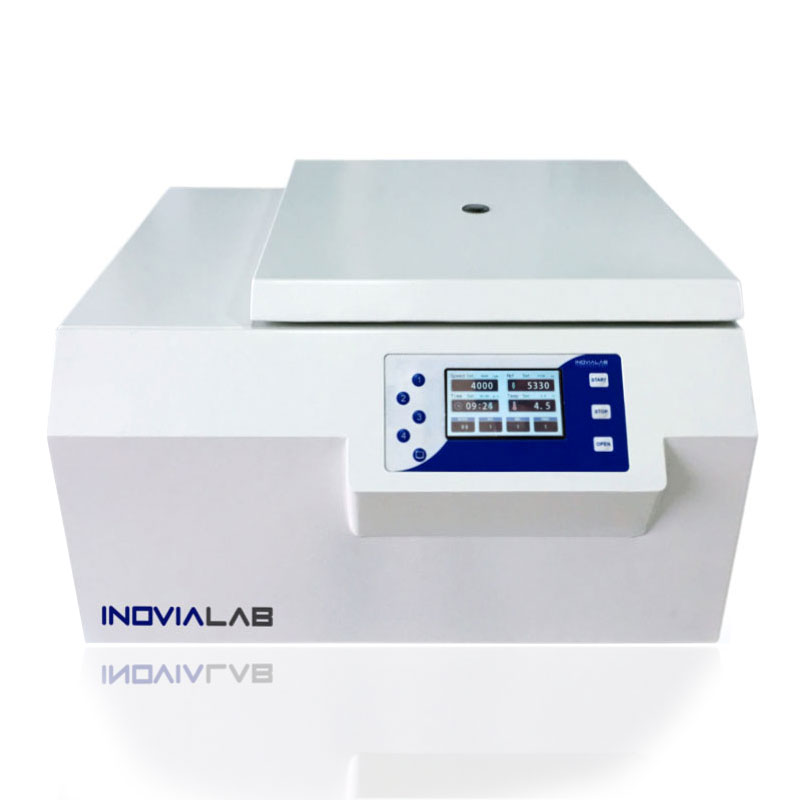

BRC-Micro High Speed Benchtop Refrigerated Centrifuge





New design touch screen BRC-Micro Table-top Refrigerated Centrifuge is generally used in blood banks, laboratories and hospitals.

High torque, microprocessor controlled, maintenance-free and dust-free brushless motors are used in its production.

The flexible shaft system with direct drive and rotor can tolerate imbalance up to 10 grams, in this way ensuring smooth running, low noise and little vibration.

It has imported compressor and precise temperature control, which does not create environmental pollution, can easily convert cold and hot, does not contain fluorine, and has double cycle cooling.

It has micro-computer control and electric automatic lock system.

It provides a reliable and healthy operation with super speed and unbalance protection.

The centrifuge body is made of high quality steel, which is safe and reliable, and there is an observation window on the top cover for calibration.

With the reliable locking system and sensors, the device does not start up until the cover is closed and the cover cannot be opened without stopping the device completely. In this way, it provides a high security operation.

In case of any power failure, you can open the cover of your device with the manual switch on the side of the device and access your samples.

The device is equipped with sensors and alarm systems that will warn the user in case of any malfunction or misuse.







Also the features at the display and inside of the menu at the panel can provide you;



* Set the "SleepTime" for the device,

* Set the "Buzzer" coming at the end of process,

* Set the "Timer" according to temperature or RPM for operating time of the device,

* Set the "Defrost" for the solve or keep icing,

* Set the "Lid Mode" for the end of process, you can set the cover manually or automatically.

* Up to 10 memory capacity for different operations.

* Adjustable RPM/RCF, Time, Temperature and adjustable 9 different acceleration and 10 different deceleration functions via LCD touch screen.





Technical Specifications




Model BRC-Micro
Maximum Speed 16000 RPM
Maximum RCF 19040 xg
Maximum Capacity 10x5ml
Speed Accuracy ±20 RPM
Timer 99s 59dk
Noise ≤55dB
Power Supply AC 220V 50Hz 2A
Dimensions (WxDxH) 480x480x275mm
Wooden Box (WxDxH) 560x560x340mm
Net / Gross Weight 48 Kg / 61 Kg







Rotor Types





Rotor Type Capacity Maximum RPM Maximum RCF
Angle Rotor 4 x 8-Strip PCR 14000 13720
40 x 0.2ml 16000 19040
40 x 0.5ml 13000 17210
12 x 1.5/2ml 16000 16260
24 x 1.5/2ml 14000 17950
30 x 0.5ml 13000 13900
10 x 5ml 16000 17800
20 x 1.5/2ml 14000 15580
24 capillaries 12000 15800
12 capillaries 12000 14800
